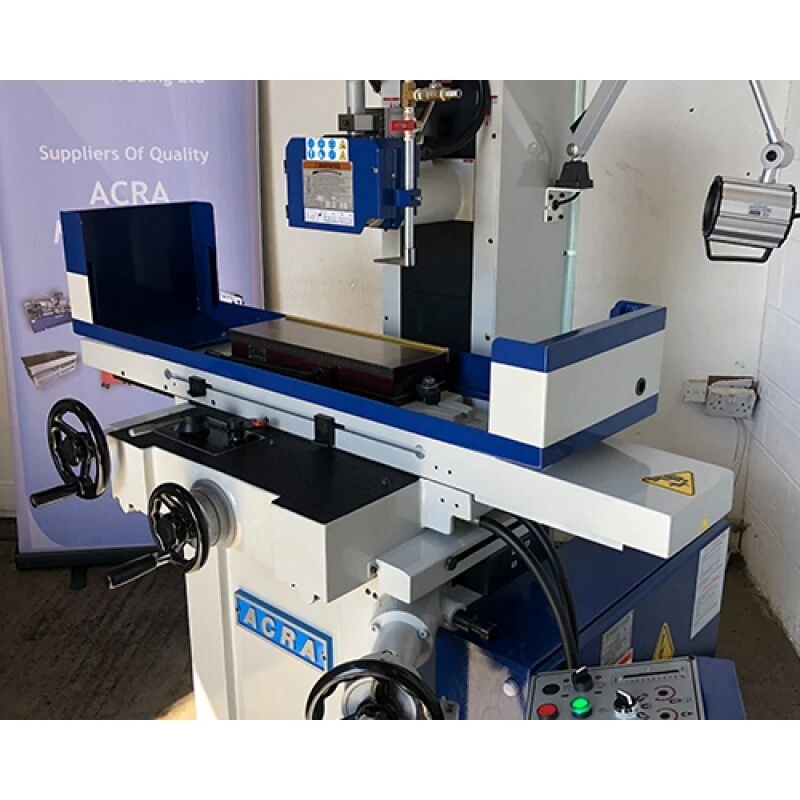

ACRA 818HS Saddle Type Hydraulic Surface Grinder, equipped with Auto Down Feed of Head.

Grinding Surface of Table, 200x450mm

Max Grinding Surface Table, 200x450mm

Max Dist. of spindle to table, 450mm

Tool Max Safety Table Load, 150kgs

Table speed Approx., 5-25 M/min

Table guide way, V & Flat way

Auto cross feed increment, 0.1-12mm

Rapid power cross feed, 900 mm/min

Cross feed on hand wheel, 1 rev = 5 mm, 1 gra = 0.02mm.

Rapid power head elevation, 450 mm/min

Vertical feed on hand wheel, 1 rev = 2mm

Auto down feed (mm/time), 0.001-0.999

Wheel speed, 2900 RPM

Wheel dimension, 180x13x31mm (max 200mm x 20 mm x31.75mm)

Spindle motor, 2HP

Hydraulic pump motor, 1HP

Auto cross feed motor, 25W

Rapid head elevation motor, 1/5 HP

Coolant pump, 1/8HP

Machine weight, 950 Kgs

Length, 2250mm

Width, 1400mm

Height, 1800mm
