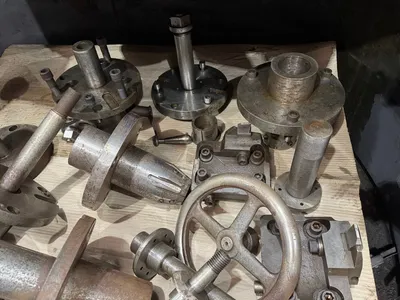

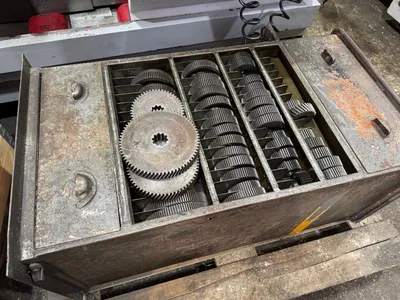

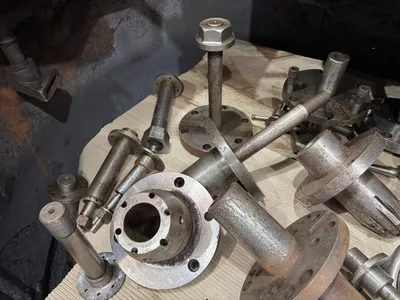

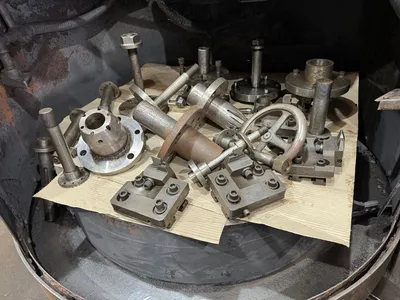

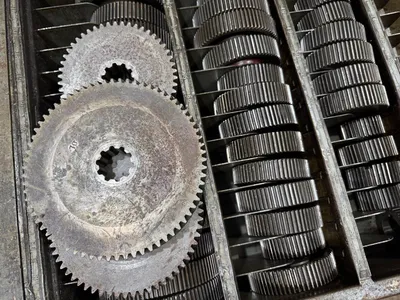

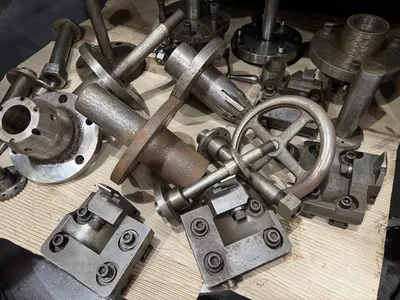

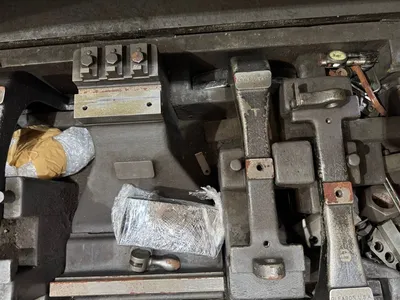

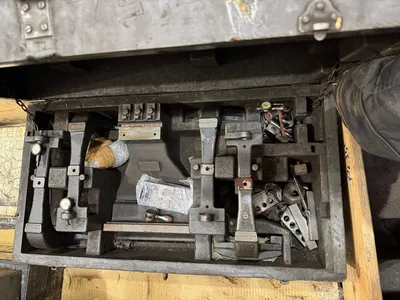

Gleason No 24 A "Coniflex" Straight Bevel Gear, Generating Machine

Description

Gleason No 24A "CONIFLEX" STRAIGHT BEVEL GEAR GENERATING MACHINE
COMBINATION ROUGHER/FINISHER, SUITABLE FOR "GENERAL JOBBING"
PRODUCTION OF STRAIGHT BEVEL (CONIFLEX/CROWN) GEARS UP TO 35.5
(901MM) PITCH DIAMETER, (AT 10:1 RATIO), 6" (125MM) FACE-WIDTH,
WITH CUTTING CAPABILITY UP TO 1.25 DP (20.4 MODULE)

Specifications
Manufacturer GLEASON
Model 24A
Condition Used
Serial Number 637001.0
Stock Number 28603
Longest cone distance (1 3/4" stroke) 18" (457MM)
Shortest cone distance 0"
10 to 1 ratio 35.5" (901MM)
2 to 1 ratio 31.75" (805MM)
1 to 1 ratio 25" (635MM)
Minimum pitch angle 5.42 DEGREES
Extreme ratio 10 TO 1
Maximum pitch 1.25 DP (20.4 MODULE)
Maximum pitch angle (shafts at 90 degrees) 84.18 DEGREES
Maximum face length 6" (152MM)
Diameter (large end of taper) 6" (152MM)
Taper per foot .75" (18MM)
Depth of taper 6" (152MM)
Diameter of thru bore 5” (127MM)
Spindle nose to machine center 5”-26” (127-660MM)
Cutter speeds (strokes per minute) 22 TO 170
Feeds (seconds per tooth) (22 feeds) 23 TO 645
Floor space required 74" X 105" (1880X2660MM)
Machine net weight 24,400 LBS. (11,295 KGS)
